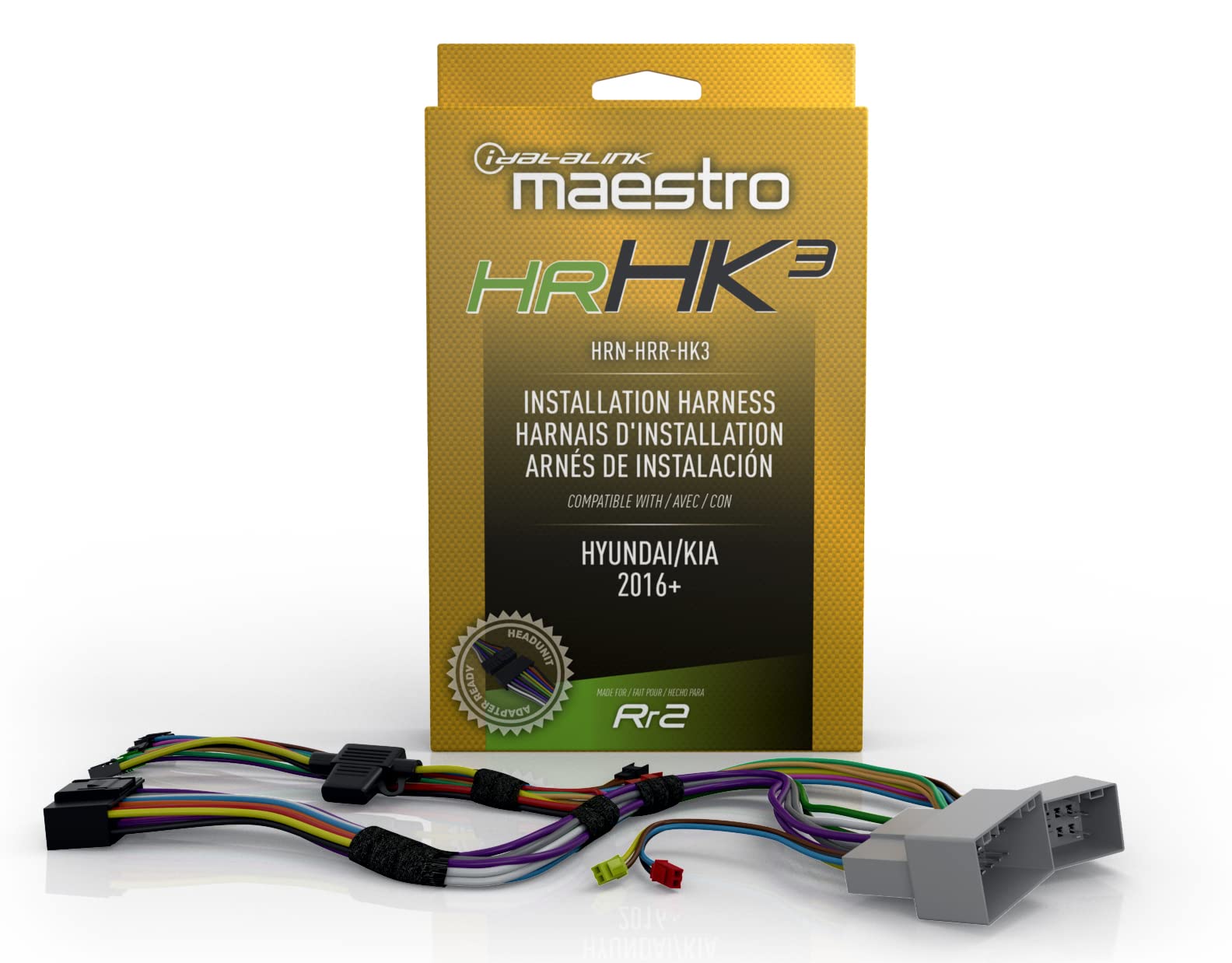

Idatalink Maestro for Compatible Hyundai/KIA (2016+) HRN-HRR-HK3 Plug and Play Installation Harness - Headunit Adapter Ready (ADS-MRR or ADS-MRR2($79.99Value)

Description

iDatalink Maestro HRN-RR-HK3 Factory Integration Adapter Connect a new iDatalink-compatible car stereo and retain steering wheel controls in compatible 2016-up Hyundai and Kia vehicles (ADS-MRR2 module also required) iDatalink's Maestro HRN-RR-HK3 wiring adapter allows you to connect a new iDatalink-compatible car stereo in compatible 2016-up Hyundai and Kia vehicles, working in conjunction with iDatalink's Maestro ADS-MRR2 module (sold separately). Once connected, you'll retain the use of your steering wheel audio controls in these vehicles. The package includes connectors that plug in between the Maestro module, your factory radio's wiring plugs, and your new car stereo. You'll have to solder or splice together this harness's power/ground, illumination, speaker, and navigation output wires to the corresponding wires on your aftermarket receiver's wiring harness. This harness allows you to retain the backup camera (and front and side cameras if present) in your compatible Hyundai or Kia, as long as your receiver has the necessary inputs. In addition, you'll also keep your rear-seat entertainment (RSE) system, parking assist feature, and climate status display, and you'll be able to view engine performance data and other vehicle info on your receiver's screen. This harness also features an in-line head-unit connector harness, which will plug into their new "Head-unit direct" harnesses for select radio brands, which eliminate the need to splice any wires. If you're installing a radio that doesn't work with a "Head-unit direct" harness, you simply cut off the plug and connect the wires to the harness included with your new radio. INSTALLATION NOTE: This HRN-HRR Plug & Play T-Harness REQUIRES an Idatalink Maestro Interface Module (ADS-MRR or ADS-MRR2) and the corresponding Idatalink Maestro Car Stereo Head-Unit ACC-HU-ALP1 (Alpine), ACC-HU-PIO1 (Pioneer), ACC-HU-SON1 (S0NY), ACC-HU-KEN1 (KENWO0D/JVC with 22-Pin Connector), ACC-HU-KEN2 (KENWO0D/JVC with 16-Pin Connector), ACC-HU-KEN3 (2024 & Newer KENWO0D/JVC with 22-Pin Connector), ACC-HU-BOS1 (BOSS Radio) or the ACC-HU-JEN1 (Jensen) Installation T-Harness. Each Sold separately. These adapters allows you to connect select car stereos to compatible iDatalink T-harnesses. (ADS-MRR: Vehicle Coverage: 30 Makes - Models: 4318 - Years: 2002+) - (ADS-MRR2: Vehicle Coverage: 30 Makes - Models: 4582 - Years: 2002+ with 3 Programmable Outputs) Idatalink Maestro for compatible Hyundai/KIA (2016+) HRN-HRR-HK3 Plug and Play Installation Harness - Headunit Adapter Ready

iDatalink Maestro HRN-RR-HK3 Factory Integration Adapter Connect a new iDatalink-compatible car stereo and retain steering wheel controls in compatible 2016-up Hyundai and Kia vehicles (ADS-MRR2 module also required)

iDatalink's HRN-RR-HK3 wiring adapter allows you to connect a new iDatalink-compatible car stereo in compatible 2016-up Hyundai and Kia vehicles, working in conjunction with iDatalink's Maestro ADS-MRR2 module (sold separately). Once connected, you'll retain the use of your steering wheel audio controls in these vehicles.

The package includes connectors that plug in between the Maestro module, your factory radio's wiring plugs, and your new car stereo. You'll have to solder or splice together this harness's power/ground, illumination, speaker, and navigation output wires to the corresponding wires on your aftermarket receiver's wiring harness.

Keeping your factory cameras and more.
This harness allows you to retain the backup camera (and front and side cameras if present) in your compatible Hyundai or Kia, as long as your receiver has the necessary inputs. In addition, you'll also keep your rear-seat entertainment (RSE) system, parking assist feature, and climate status display, and you'll be able to view engine performance data and other vehicle info on your receiver's screen.

Installation note: The HRN-RR-HK3 adapter must be used with the iDatalink Maestro ADS-MRR2 module to connect a new car stereo to your compatible Hyundai or Kia vehicle. This adapter works with select compatible 2016-up Hyundai and Kia vehicles without factory amplifiers.

This harness also features an in-line head-unit connector harness, which will plug into their new "Head-unit direct" harnesses for select radio brands, which eliminate the need to splice any wires. If you're installing a radio that doesn't work with a "Head-unit direct" harness, you simply cut off the plug and connect the wires to the harness included with your new radio.

Product highlights:

Allows installation of new iDatalink-compatible receiver in compatible Hyundai and Kia vehicles (also requires the Maestro ADS-MRR2 module)

Retained features include:

- Retains the use of your steering wheel audio controls in select vehicles

- Retains factory backup camera and front/side cameras (receiver must have a second camera input)

- Rear Seat Entertainment system and climate status
